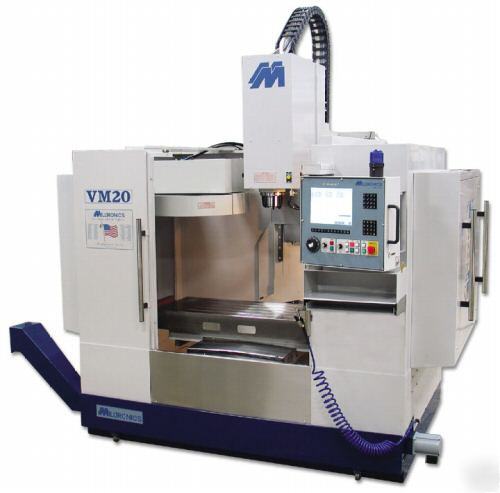

40 x 20 x 26 (x,y,z,) travels, 45 x 20 table, 8000 RPM, 24/15 h.p. CT40 24 Pocket Automatic Tool Changer.
Options: Package A, B, C, D. for only $69K
· Massive Heavily Ribbed Machine Tool Grade Cast Iron Construction
· Precision Ground Table, Rail and Rail Block Mounting Surfaces
· Chip Removal System with Optional Auger and Conveyor
· Inverted Rail Table Designs Keeps Bearing Blocks Centered Under Spindle
· Soft Start High Speed Way Covers Allows for up to 1600 ipm Rapid Traverse Rates
· Heavy Duty Enclosure with Work Light and Overhead Loading Capability
· Wide Side Doors for Cleaning or Large Parts That Can Extend Through
· Precision Ground Double Anchored Ball Screws With Dampening Couplings
· Five Bearing Air Purged 8,000 RPM Spindle Cartridge Assembly
· Spindle Taper Blow-out and Tool Release Push Button
· PC-based Centurion 7 with 2 Mb Parts Storage Memory Non‑volatile motionless disk
· 10" LCD Active Matrix Color Display with Tactile Keys or 12" with Discrete Keys
· Five Axes Simultaneous Interpolation Software and Interface
· 6 Mb Virtual Disk / RS-232 with DNC Buffer
· 1200 Block/Sec High Speed Processor with Optional High Speed Software
· Conversational plus G & M Code Programming with 3D Part and Tool Path Graphics
· High Torque Vector Spindle Drive with Automatic Shift on Two Speed Motors
· Front Panel Electronic Handwheel with Handwheel Feed
· Auxiliary Keyboard Port for PC Keyboard with Optional Tray
· Electronic Spindle Orient and Rigid Tap
· High Torque AC Digital Servo Drives
All Axes Laser Calibrated and Ballbar Inspected
Engraving, Helical Interpolation, Auto Routines, and User-definable Macros with Trig Assist
Coordinate Rotating, Scaling, Mirror Image, Thread Mill
8 Mb Program Execution Memory with Large Program Management Software
Single Spare “M†Function and CNC “Wait†Channel
Additional 10 Mb Parts Storage Memory (12 Mb total)
Chip Bucket for Chip Auger or Conveyor
Flood Coolant System Including Through Head Cooling, Six Nozzles and Flood Pan
Chip Auger System – Requires Flood Coolant
Remote Handheld Electronic Handwheel
24/15 HP 18/11 kw Two Speed Upgrade
Off-line FastCAM Software for Programming and Training
Chip Bucket for Chip Auger or Conveyor
Upgrade to 12" Color LCD & Discrete Keys
Solid State, Non-volatile, Memory Upgrade to 256 Mb
Networking Option includes 30 Days Phone Support Recommend 256 Mb Option
Multi Format Flash Memory Card Device
Auto Import of DXF Files Conversion Software
Additional 16 Mb Program Execution Memory Allows editing of 10 Mb programs
“S†Curve Accel/Decel Ramp Modifier with Feed Forward and Look-Ahead for High Speed Machining or 3-D Milling
CA sales tax applies to CA residents. This sale is an exclusive offer in Southern California, basically from San Luis Obispo to San Diego.
