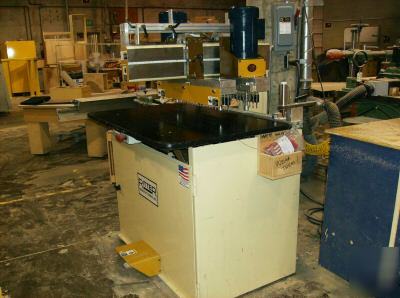

This is a used Ritter R-46 Double Line Drill
Heavy Duty Industrial machine. Drills 46 holes at a time. Usually a cabinet side can be drilled in one pass. Holes are for shelf pins, drawer slides, hinges etc.

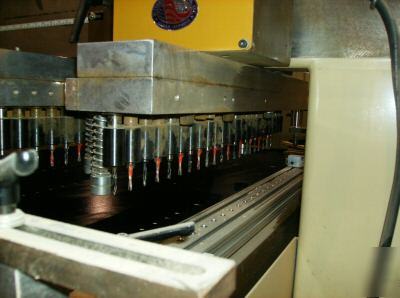

Machine also has 46ea 5 mm brad point bits on machine.
and EXTRA BITS SEE PICTURES That is at least a $750.00
For larger equipment or multiple items, I can do a 2, 3 or 5 year Lease to own.
A $10,000 purchase is only about $250.00 per month for 60 months
I will help you don’t know how to arrange.
I can load with forklift and put on truck but machine is not crated.
If you want it completely crated I can get you in touch with local crating company.
This has to either be picked up or go common carrier. I have a forklift on my end.
Please note this is wired 230v 3phase.
If you are planning on putting at your house you will probably need a phase converter.
I can help you with that also.
If you are putting this in your shop. Don’t forget dust collection. I can either sell you a new dust collector or just the ducting. In my daytime job I specialize in new machinery and complete shop layout.
It does take time and money to list these items.
Please call or email me and we can discuss any questions. George (***) 887-9172

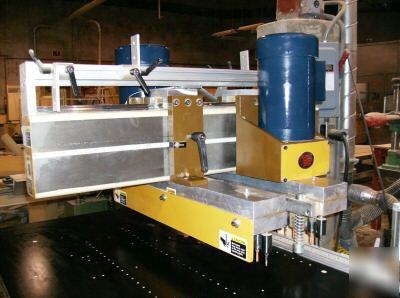

* (2) 23-Spindle Gear Driven Drill Heads
* Requires (24) Right hand, (22) Left Hand
* 10mm Bored Collets with Set Screw Lock
* (2) 3 HP Spindle Drive Motors, TEFC – 230/460 Volt, 3 Phase
* Both Heads Adjustable from the Backfence
* 4â€-24†Adjustable Between Heads
* Precision Linear Bearing Heads Adjustment
* 3-Position Drill Head Index Turret

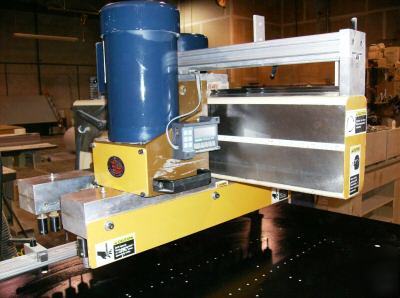

* Digital Front Head Location Display
* 30†x 48†Work Table Surface

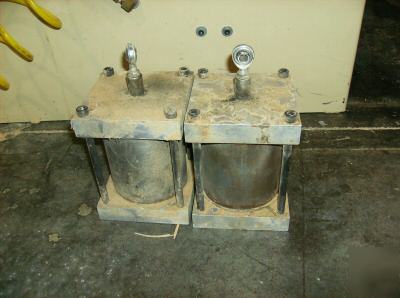

* (2) 4†Bore Table Drive Cylinders
* 0-2†Adjustable Table Feed Stroke
* Two-position Drill Depth Turrett
* 48†Single Reference System Backfence
* (2) Adjustable Backfence Stops
* (2) Fence Mounted System Index Pins
* (4) Adjustable Spring Material Holdowns
* Foot Actuated Drilling Cycle
* ¼†Filter, Regulator, Lubricator
* Machine Weight: 1,341 lbs.
H259 Digital Rear head location display 1125.00
U4662 Additional Fence stops 146.00/ each
2HP, 1PH 220 volt drive motors 346.00
