Parker Pertek Pneumatic PTFE Sampling Valve
If you have any questions please call us at: (***)-421-2389

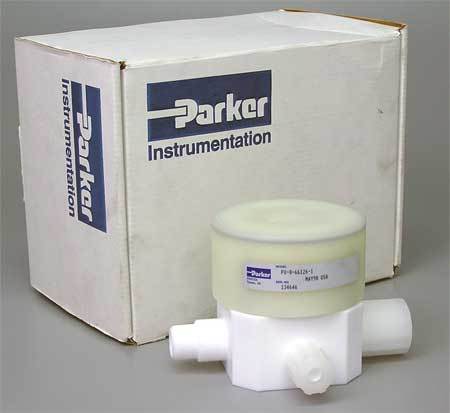

Front View of PV-8 Sampling Valve
Side View of PV-8 Sampling Valve
2nd Side View PV-8 Sampling Valve
The Parker Partek PV-8 pneumatically operated sampling valve
is designed for use in high purity Semiconductor applications, and is
also ideally suited for ultra-pure water or aggressive chemicals. The
design utilizes a machined PTFE body with precision machined seat
and diaphragm sealing areas. A one piece machined modified PTFE
diaphragm is also utilized for excellent flexibility and life. The valve incorporates
a full flow through port with a low dead volume downleg. The purge port
option makes this the valve the choice for
valve manifold boxes & distribution systems
* External Surfaces: PTFE & PVDF
* Spring: Stainless Steel
27" Hg vacuum (913 mbar) to 60 PSIG (4.2 bar)
Actuator - 60 PSIG (4.2 bar) to 120 PSIG (8.3 bar)
* 0° - 212° F (-17° - 100° C) Ambient
* 0° - 266° F (-17° - 130° C) Fluid
* Through Port: Parflare: 3/4 inch
* Parflare: 1/4 inch (sample port?)
* Parflare: 3/8 inch (purge port?)
Information gather from the manufacture.
Specifications above may vary slightly from the actual unit pictured
the posting. This does not mean that the unit doesn’t work, only
that we have not tested or checked out the merchandise, or are not
knowledgeable in that specific item. If you have any questions please
feel free to call (***)-421-2389
