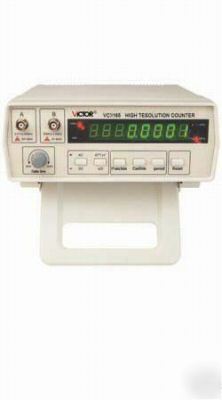

It is a high-resolution multifunction intelligent frequency counter based on microprocessor.
Features include frequency, period and equal-precision measuring. Also, 3 step function selection,
work state, unit and eight-digit LED display. All function depend on a single CPU. A crystal controlled
temperature circuit provides constant compensation for temperature change thereby reducing measurement
errors typically caused by temperature drift. The CH.B input has an attenuator(X1,X20), &AC/DC coupling for
The instrument measures signals over a wide range from 0.01Hz to 2.4GHz. The gate time is continuously
The instrument provides high performance stability, & function at a low cost.
Note: Read this chapter carefully before using your instrument retain these instructions.
1) 8-digit LED display, clear reading
2) Selective range, high stability
3) Frequency measurement: 0.01Hz ~2.4GHz
4) Cyclic measurement range: 0.5nS~10S
5) Gate adjustment range: 100mS~10S continuous adjustable
  frequency range : DC couple 0.01Hz to 100Hz
                     AC couple 100Hz to 50MHz
  Sensitivity     :"AC" 100Hz-50MHz<=80m Vrms
                    "DC" 0.01Hz-1Hz<=500m Vp-p
                    1Hz-100Hz<=80m Vrms.
  Max.safety voltage: 30V (DC/AC peak)
  Frequency range  : from 50MHz to 2.4GHz
  Sensitivity      : 50MHz-1.2GHz<=80m Vrms   1.2GHz-2.4GHz>80m Vrms
  Coupling         : AC only
3) Resolution       : Resolution depends on gate time control setting.
   Step        Coupling        Freq.Range                          Resolution
                                                             Gate time min.         Gate time max.
    1            AC            1GHz-2.4GHz                   1kHz                 100Hz
    1            AC            50MHz-1GHz(excluding 1GHz)    1KHz                  10Hz
    2            AC             2MHz-50MHz                   1KHz                  10Hz
    3            AC            100Hz-2MHz                    10Hz                  0.1Hz
    3            DC            0.01Hz-100Hz(excluding 100Hz)            0.001Hz
  short time stability        : +/-3*10 ^-9/second
  Long time stability        : +/-2*10 ^-3/month
  Temperature drift coefficient: +/-1*10 ^-7,10C-40C
  Line voltage variation      : +/-1*10 ^-7 for line voltage +/- 10%
5) Gate time                   : Continuously variable,from 100ms to 10s.
6) Display                     : 8digit, 19*12.5mm LED with steps, frequency, period, kHz/s and MHz/ms, indicator.
7) Precision                   : standard time error(t)* frequency(f) +/-1d
8) Power supply                : 220V/110V +/-10%, (50Hz/60Hz) +/-5%
9) Preheat time                : 20 mins
10) Operation environment      : 0C-50C, 10-90% R.H.
11) Weight                     : Approx. 1.6kg
All our SP serial Frequency Counters are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warranty.
