LogBox-AA - Dual Channel Data Logger
The Novus LogBox-AA is a high-quality and highly versatile microprocessor-based data acquisition instrument for process variables. The sturdy, waterproof device features two analogue inputs, and accurately records the measurements in an internal memory of 32,000 readings. Data can be retrieved and analysed using the included LogChart-II software.
* Power: internal 3.6V lithium battery
* Two universal analogue inputs: thermocouple types J, K, T, E, N, R, S and B, Pt100 RTD (2- or 3-wire), 4-20 mA, 0-50 mVdc, 0-10Vdc
* Capacity: 32k readings (log frequency programmable from 10s to 18hrs)
* Internal resolution: 4096 counts (12-bit)
* Accuracy: thermocouples J, K, T and N: 0.25% of range ±1°C; thermocouples E, R, S and B: 0.25% of range ±3°C. PT100: 0.15% of range. Linear voltage or current: 0.15% of maximum range
* After a number of readings
* Wraparound (overwrites first readings)
* Built-in sensor PSU switch automatically switches on power to external sensors when taking a reading, then switches power off (extends external sensor battery life)
* Includes LogChart-II Microsoft Windows configuration and analysis software
* Ambient temperature: -40°C to 70°C
* Material: ABC + PC case; polycarbonate film
* Dimensions: 60 x 70 x 35 mm
Typical applications includes fluid flow and pressure monitoring, with the logger connected to pulsed signal flowmeters and linear output pressure transmitters. Wireless communication and data transfer between the LogBox and a PC or Palm PDA can be easily effected via the IR Link 3 adaptor (sold separately if required).

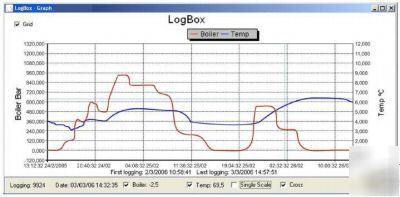

The included LogChart-II Microsoft Windows software (downloadable at www.novusautomation.co.uk) is used to configure the logger through a PC and infrared interface. This includes defining the logger operation mode, programming the start/stop time of data acquisition, setting parameters such as signal input type, logging interval (between 10s and 18 hours), multiplication factor, scale range etc. The software also allows download, analysis (in tabular and graphical format), printing and export of all data.
This is a brand new item which comes with a no quibble 7 day moneyback guarantee, full manufacturer's warranty and FREE configuration and analysis software!
