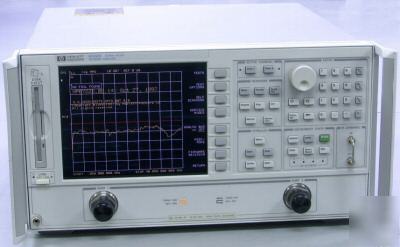

The 8722D network analyzer brings together an unbeatable combination of speed, performance and ease-of-use features to solve your measurement needs. This combination is ideally suited for today's R&D and high-volume manufacturers in the communications, aerospace/defense and consumer electronics industries. Faster CPU and wider 3.7 and 6 kHz bandwidth IF filters provide exceptional sweep speed, error correction, register recall and data-transfer rates.
Reduce measurement time by optimizing measurement parameters with swept list mode. Simultaneously display all four S-parameters while tuning devices (available Q398). Quickly record or print all four S-parameters for data archiving. Enhance the visibility of displayed data by adding an external VGA monitor. Improve product yields for noninsertable devices with adapter-removal calibration. A four-time increase in nonvolatile memory allows more complex calibration data and instrument-state storage and recall. Touchstone©-compatible (S2P) format provides fast data transfers for new design and simulation applications.
* 007: Mechanical transfer switch: replaces the solidstate transfer switch with a mechanical transfer switch. Increases test port power and dynamic range by 5 dB
* 010: Time-domain capability: allows time-domain measurements
* 50 MHz to 40 GHz Frequency Coverage
* 3.5 mm Test Port Connector
* New processor makes measurements and data transfers up to seven times faster
* Fast-sweeping, built-in synthesized source (sweep range: 20 dB)
* Integrated solid-state switching S-parameter test set
* Vecter receiver, error correcton, time domain
* Up to 105 dB dynamic range
