Mitutoyo 6" dm caliper IP66 coolant proof w/abs.encoder


Poster: 192123621@iowa-industrial.com

Mitutoyo 6" dm caliper IP66 coolant proof w/abs.encoder

Mitutoyo 6" DM Caliper IP66 Coolant Proof w/Abs.Encoder
Mitutoyo 6' DM Caliper IP66 Coolant Proof w/Abs.Encoder
Mitutoyo 6' DM Caliper IP66 Coolant Proof w/Abs.Encoder
Mitutoyo 6' DM Caliper IP66 Coolant Proof w/Abs.Encoder
If you are the winner, click the button above to check out right now!
Mitutoyo 6' DM Caliper IP66 Coolant Proof w/Abs.Encoder

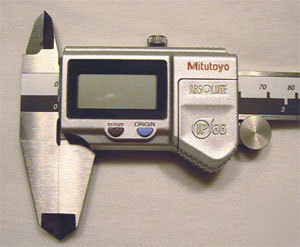

1 Piece New Mitutoyo Brand New Made in Japan Coolant Proof Digimatic Caliper with Absolute Encoder (IP-66 Level Protection).
The World's First Coolant Proof Caliper
Introducing Mitutoyo's Coolant-Proof caliper, the world's first digital caliper sealed against fluids and contaminants! Mitutoyo introduces the toughest digital caliper in the world–the first that's IP-66 rated: coolant-proof, dust-proof, chip-proof. Use it anywhere in the shop. It also includes Mitutoyo's patented absolute encoder technology, the "Set 'n Forget" origin set-up feature. Now you can take digital measurements in places you never could before! Models available with SPC output.
* Quantizing Error: ± 1 Count.
* Repeatability: .0005"/0.01mm
* Display: LCD (Character height: .3"/7.5mm)
* Functions: Origin setting, Automatic power on/off*1 Inch/mm conversion, Data output
* Battery: SR44 (1pc.) up to 8" (2pc.) for 12"
* Battery Life (0-6"): Approx. 3-year under normal use
* Battery Life (0-12"): Approx. 1-year under normal use
* Measuring System: Electromagnetic induction type absolute linear encoder*2
* Response Speed: Unlimited *1 Patent pending (Japan, U.S.A., China, UK, France) *2 Design pending (Japan, U.S.A., China, UK, France)
* Type: Operator-safe and protection against foreign mattter
* Level: 6:Protection against dust
* Definition: Protect the equipment against dust not to penetrate
* Type: Protect against water
* Level: 5:Protection against water jet
* Definition: Protect equipment against water jet thats' from any direction*
* Condition: Using a nozzle with 12.5mm ID and water jet with 30Kpa water pressure (approx. 100L/min) on the equipment from a distance of a meter for 3 minutes or over (1 minute per 1m2 superficial area).
* Measuring Range: 0-6"/0-150mm
* LCD Resolution: .0005"/0.01mm
*
*
*
