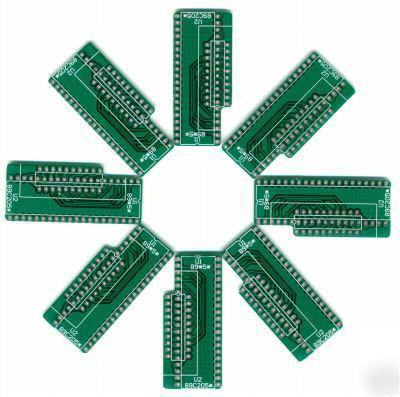

This is a 1-2 layers PCB manufacturing service
We offer a High Quality service at a good price !!!
(1 inch = 2.54cm , 200²inch = 1290²cm)
If you need larger area,it will be £0.18/inch² for 1-2 layers.
For example if the size of your board is 10²inch
£59.99 You Can Get: 200²inch ÷10²inch = 20PCS
We also provide PCB manufacturing form Schematic,old pcbs reproduce,source component and Complete Assembly Service. good price for any quantity.
E-mails are answered 24 hours a day, 7 days a week.
Specifications and regulations of the for 1-2 layers PCB
* NO SETUP OR HIDDEN FEES, ALL PRICES ARE LISTED AND INCLUDES ALL EXTRA WORK PRICES.
* NO CHARGE FOR SOLDERMASK AND POSITION PRINT.
* NO LIMIT ON THE NUMBER OF SMD OR PTH COMPONENTS.
* NO LIMIT ON THE NUMBER OF VIAS, HOLES, MAXIMUM ONE INNER CUT.
* Multi-different designs on a signal panel is not allowed
* 1-2 Layers ,FR4 material,0.062",1oz Copper
* Minimum hole size 0.5mm(20mil), Minimum track or track width 0.2mm(8mil).
* Green solder mask, one or two side white silkscreen
* Total area of all boards combined should be less than 200²inch,Singel board size less than 50² inch.
* In addition to standard Gerber RS-274x File and Drill File, we directly support and accept file format of :
Check me to Sent your design files.
All trademarks and logos property of their respective owners.
(Unlisted Files Format Please Ask By Email)
Price List for Special Request
* Extra £10 will be charged if baord thickness not 1.6mm, we can supply board ticknessg 0.3mm-3.2mm.
* Extra £10 will be charged if "blue, red, black" solder mask is needed.
* Extra £30 will be charged if single size > 40²inch (258²cm), but FREE for once order grater than 40/pcs.
* Extra £20 will be charged for 1-2 layers PCB. V score line can be used for Multi-Projects panel.
* Extra £30 will be charged if gold fingers or gold plating on the board.
* Extra £20 will be charged if 2oz copper is needed for 1-2 Layers PCB.
* Extra £20 will be charged if min hole size<20mil(Min 4mil),track width/track-pad/pad-pad/space<8mil(Min 4mil).
* Extra £40 Will be Charged for 1-2 layers, 72 hours lead-time.
They promise delivery within 2-4 business days to United Kingdom and worldwide
EMS (Express Mail Service By Post-Office)
( 200²inch PCB + Packaging material will weights around 1Pound.)
