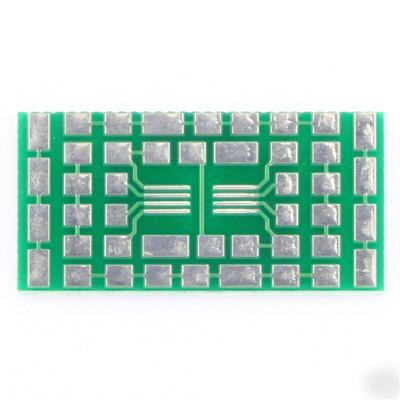

FP276508 PROTO-BOARD 8PIN SOIC/ SSOP/TSSOP
Accepts 8-pin SOIC (1.27mm/0.05in), SSOP/TSSOP (0.65mm/0.026in)
For general purpose prototype and development.
IC footprint accepts industry standard 8-pin SOIC/SSOP/TSSOP package.
Foil Modification Expand Versatility:
1. Score foil with sharp razor to cut the circuit
3. New mounting zone has been created
4. Solder component to new mounting zone
Board Material: 0.062 in. thick FR-4, Glass Epoxy or equivalent.
Circuit: 1 oz copper with solder coated pads
