750MHz Cat5 Cat 5e Cat 6 Cat7 LAN Cable Certifier
This Unit Is Currently In Transit From Calibration!
The LANTEK 7 is fully upgradeable to 1Ghz (1000Mhz) testing and certification, protecting your investment and giving you the maximum flexibility, contact Ideal regarding upgrade .
LANTEK 7 comes standard with the items necessary to certify your job and create certification reports.
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
Support for CAT5e, CAT6 and CAT7 — up to 750 MHz
* World's first LAN cable certifier with a frequency range up to 750MHz, exceeding CAT 7/ISO F draft specifications.
* Reduce costs and increase versatility with LANTEK's link adapter method.
* Brightest color screen in the industry.
* Industry's most advanced fiber test options FIBERTEK and TRACETEK.
* Worn out adapter leads? Replace the Patchcord Lead, not the adapter
* Wiggling Adapter Connections changing your results? Never again with IDEAL's Adapter Locking System
* Snap in FIBERTEK Adapters and test Singlemode Fiber backbones bi-directionally, with one or two wavelengths over either one or two fibers
* Or snap in FIBERTEK Multimode adapters and test gigabit Ethernet and other new ANSI applications on Multimode Fiber links, test Multimode Fiber backbones, bi-directionally, with one or two wavelengths over either one or two fibers
* Need a $20,000 OTDR to find faults? Not with FIBERTEK Adapters. Select TRACETEK and pinpoint the fault's location
* Trouble seeing the display screen under fluorescent lights or in direct sunlight? Check out the LANTEK 6 or LANTEK 7 color display screen, the brightest, sharpest display in the industry
The continued evolution of cabling over the past decade means that today's installers must be able to certify to the newest leading edge cable standards as well as dealing with a variety of previously installed cabling that conforms to earlier standards. The same tester should seamlessly interface with UTP, ScTP and FTP cable and be able to verify compliance with CAT5, 5e, 6 and 7 or ISO C/D and ISO E/F (draft) standards. The LANTEK 7 is the first cable tester that is fully compliant with emerging CAT7 and ISO F standards at a frequency range up to 650 MHz and beyond (750 MHz). The LANTEK 7 also provides complete backward-compatible testing at up to 250 MHz for all previous cabling standards.
Full Range of Integrated Test and Certification Functions

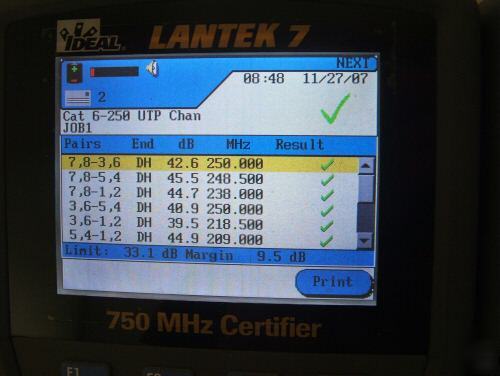

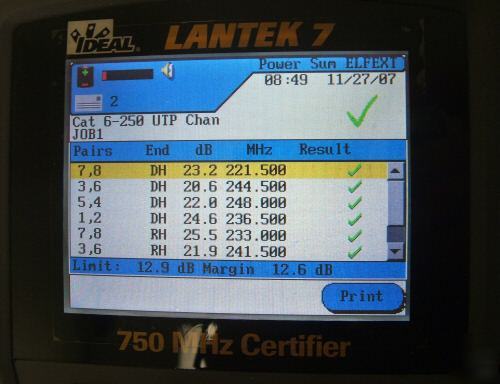

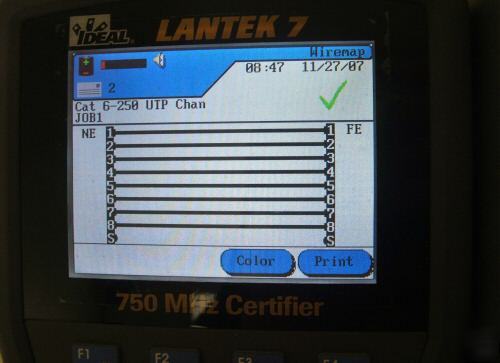

Multi-function testers need to accurately measure all relevant characteristics in order to give installers a complete picture of the link under test and to provide a solid foundation for both certification and troubleshooting. Fundamental requirements include basic wire mapping functions (length, continuity, shorts, opens, etc.), impedance, capacitance, DC loop resistance, attenuation and delay, as well as higher level functions such as return loss and crosstalk (NEXT and ELFEXT). Testers also must be able to meet both Level II and Level III accuracy requirements at least up through the 250 MHz frequency range. Ideal's LANTEK 6 and 7 testers lead the industry in the seamless integration of advanced test suites that bring together all critical ANSI/TIA/EIA/ISO/IEEE requirements within a single unified test and certification platform.
All-in-One Tester to Handle Both Copper and Fiber
In order to remain competitive, installation contractors must be able to handle both copper and fiber networks but they can't afford to deploy completely separate test platforms or invest in extensive training on disparate methodologies. For example, the FIBERTEK test option allows a LANTEK 6 or 7 tester to be seamlessly adapted for measuring signal loss and length over either Multimode or Singlemode fiber cabling.
Built-in Troubleshooting Features for Pinpointing Fault Locations
Whenever a specific test fails, the installer needs to be able to move directly into a comprehensive troubleshooting mode without having to change test instrumentation or reconfigure their set-up. After eliminating obvious fault possibilities that typically occur near the link's endpoints, users need to drill down and locate any anomalies within the link.
LANTEK seamlessly integrates high-end Time Domain Reflectometry (TDR) functions that enable users to simply switch into the instrument's Analyze menu and use the TDR's graphical display to interactively pinpoint the exact location and nature of the fault conditions. For twisted pair cabling, the LANTEK's TDR analysis function can even be independently applied to each wiring pair. In addition, LANTEK's TRACETEK option gives installers the ability to quickly trace a fiber run and locate the distance and magnitude of events within the fiber link — without incurring the expense or complexity of costly Optical TDR functionality.
Rapid Setup and Fast AutoTest Performance

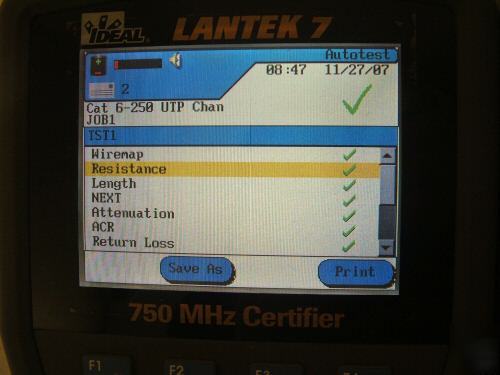

LAN installers can't afford to waste any of their time in the field. The ability to quickly test and certify all network elements represents the key to both their competitiveness and their profitability. Field testers must accommodate this goal by providing fast, efficient and easy-to-use test suites. LANTEK 6 and 7 testers include comprehensive AutoTest functions tailored for CAT5, 5e, 6 and 7 or ISO C/D and ISO E/F that can quickly provide complete easy-to-read graphical test results. For example, the LANTEK 7 can generate comprehensive CAT6/ISO E AutoTest results in approximately 35 seconds for a 250 MHz frequency range.
Handheld Portability, Ruggedness and Ergonomic Operation
Field test instrumentation isn't worth much unless it can stand up to the rigors and requirements of day-to-day usage in real-world situations. Designed for rugged portability, the main LANTEK testers and associated remote units both have an overmolded edge to resist even the harshest environmental factors and to provide continuous reliable operation in the field. With the industry's brightest 1/4 VGA color screen on the main unit, plus a two-line black and white LCD display on the remote, LANTEK provides easy-to-read menus and test results, regardless of the surrounding ambient lighting conditions.
The Bottom Line: Comprehensive Features, Performance and Value
Installers need field-hardened tester platforms that bring together the entire spectrum of key features that they actually use on a day-to-day basis, along with an extensible technology foundation to address special situations as they arise. Field devices need to support core AutoTest and link certification processes at high speeds while also offering the flexibility for installers to move seamlessly into in-depth interactive troubleshooting procedures whenever required.
As the centerpiece of the contractor's LAN installation toolkit, the multi-function tester must be able to handle the full spectrum of copper and fiber cabling types and certify to all relevant standards, while delivering the consistent uptime, fast test results and smooth integration with overall workflow processes. The LANTEK handheld testers from Ideal Industries are designed and manufactured with meticulous care to meet all of these requirements, thus providing installation contractors with an ideal foundation for streamlining test procedures and maximizing efficiency within real-world field test environments.

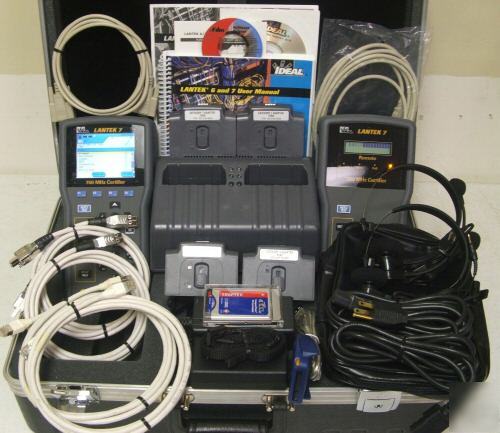

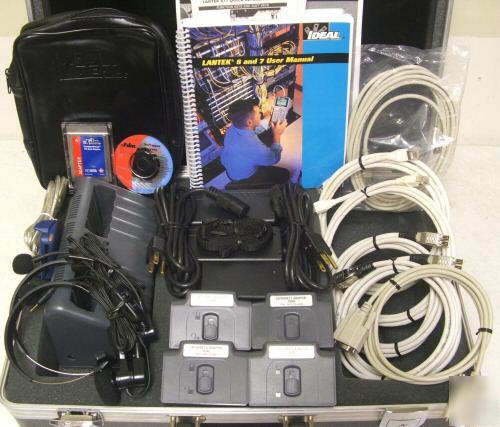

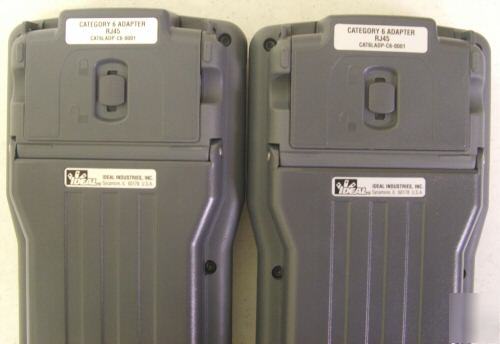

* (2) Cat 5/5e/6 Channel Test Adapters
* (2) Cat 7 Channel Adapters
* (2) CAT 6 Reference Patch Cords
* (1) Ideal Dual Bay Battery Charger 0012-00-0642
* Compact Flash Card Adapter
* LANTEK Reporter Software (Cable Test Management Software)
