New Desktop VHDCI Breakout for use with National Instruments and Labview
QTY 1 Breakout (Cable NOT included)
Click here for DAQstuff's CONNECTOR GUIDE for NATIONAL INSTRUMENTS

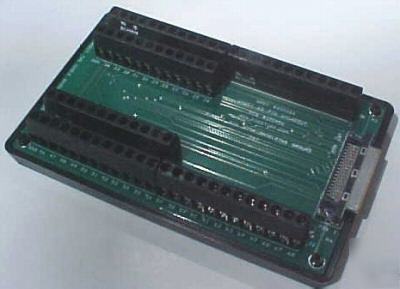

Female 68 Pin VHDCI SCSI V Right Angle Connector with 72 Screw Terminals
68 Pin wired 1 to 1 with 4 cable shield ground terminals
pdf with dimensional drawing is available - just ask..
* Qty 1 - #400058 Desktop version
* Each Pin is clearly labeled
* Great for low noise testing with good shielding and grounds
National Instruments VHDCI DAQ Cards have Female Connectors. This Breakout has a Female Connector and comes in a black case. Use a VHDCI Male Male Cable #100469 (pictured but sold separately) to connect the two.
Need a Power Supply ? We have a GREAT Selection of +5V, +12V and +3.3V
Check out our Breadboard Section in our store - DAQ stuff store
