Westinghouse transformer 225 kva dt-3 DT3 480/208/120V


Poster: 514338607@iowa-industrial.com

Westinghouse transformer 225 kva dt-3 DT3 480/208/120V

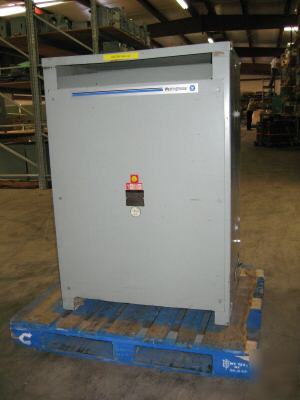

These Three Phase Transformers came out of an environmentally controlled facility where they were regularly maintained and serviced until factory shut-down. These transformers are in Great condition both Externally and Internally.
Class AA Three Phase 60 Hertz Transformer
kVA: 225 Cont. 150 Deg. C Rise Ser.: T87H06323 WT: 1400
H.V.: 480 Delta L.V.: 208Y/120
Style: V48M28T22J % Imped at 170 Deg. C: 5.3 Cat Spec: 8E204

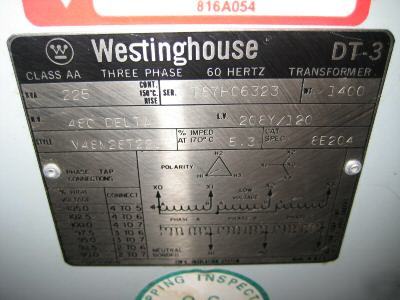

For additional specs, see picture of nameplate below
If you need more photos, I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can.
Our business has been in operation for over 20 years.
