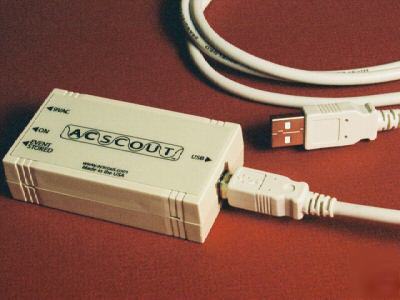

Monitors AC power (alternating current) of standard North American outlet (120 Volt). The unit can monitor AC power voltage surges, outages, variations in frequency and also the temperature of its environment.
The end user can set the limits for each alarm type and select whether an alarm is generated. When unit has one or more alarms, the red LED indicates alarms stored in unit.
ACScout has as battery to allow it to keep the time and date even when the AC power is off. Battery life should exceed 10 years.
Alarms are stored in a nonvolatile flash memory. The memory can hold up to 400 alarms and can be cleared at any time by the user.
Records up to 400 alarms that can be uploaded to standard Windowsâ„¢ based PC via USB 1.0 or 2.0 interface. Works with Windows 2000â„¢ and Windows XP/XP Proâ„¢ operating systems.
Does not need to be connected to a PC to record alarms. Only for initial setup and alarm retrieval.
Indicators Green LED indicates power on; Red LED indicates one or more alarms stored
Weight: 8 oz. with wall transformer
Operating Limits/Accuracy: Voltage limits 0 to 200V volts RMS; accuracy +/- 2 Volts RMS. Minimum time to detect a voltage variance 1/10Th of a Second. Frequency range nominal 60Hz +/- 2Hz; accuracy +/- 1 Hz. Minimum time to detect a frequency variance 1/30th of a second. Temperature between 0 Degrees F to 120 Degrees F; accuracy +/-5 Degrees F. Temperature specifications valid after continuous operation for at least 30 minutes.
PC Requirements: Windowsâ„¢, Windows XP/XP Proâ„¢ with USB 1.0 or 2.0 interface and standard Windowsâ„¢ HID drivers. Uses only 2 MB of hard drive disk space.
Event Types Detected: AC power off, AC power on, AC voltage high, AC voltage low, AC frequency high, AC frequency low, temperature low, temperature high, time and date of all alarms recorded.
Warranty: 5 years return to factory for replacement.
