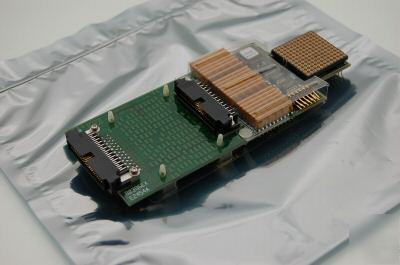

HP E2454-66501 Rev. A 80386EX E2454A Analysis Probe
This HP E2454-66501 Rev. A 80386EX E2454A Analysis Probe is in good used condition. All the pins on the 12x12 full matrix PGA interface are straight and clean. All chips and traces are clean and in good condition. The plastic protector sleeve is intact with no cracks or chips.
Here is some information I found on other sites -
The Agilent Technologies E2454A Analysis Probe provides a complete interface for state or timing analysis between any of the supported 80386 microprocessors listed below and Agilent Technologies logic analyzers.
Microprocessor Package Ordering Information
80386EX 144-pin TQFP E2454A and E5336A
The analysis probe provides the physical connection between the target microprocessor and the logic analyzer. The configuration software on the enclosed disks set up the logic analyzer for compatibility with the analysis probe. The inverse assemblers on the disks provide displays of the 80386 data bus in 80386 assembly language mnemonics.
If you are using the analysis probe with the Agilent Technologies 16600 or 16700 series logic analysis systems, you only need this manual as a reference. The Agilent Technologies 16600 and 16700 series contain a Setup Assistant, which guides you through the connection and configuration process using on-screen dialog windows.
Check out the Site at -http://cp.literature.agilent.com/litweb/pdf/E2454-97005.pdf
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold untested but is guaranteed NON-DOA with a 7 day ROR.
