Heathkit color bar & dot generator ig-28 w/manual

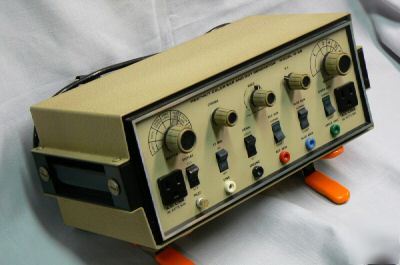

Heath (Heathkit) IG-28 Color Bar and Dot Generator with Manual

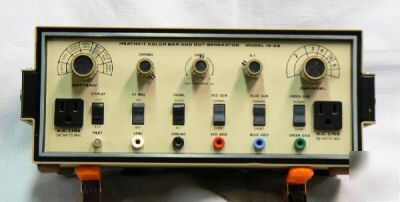

Offered here is a Heath IG-28 color bar and got generator. It is in very good to excellent physical condition. The faceplate is nearly perfect. There are only a few minor scratches on the sides, rear, and bottom.
Electrically, I was able to test the RF output port and it seems to be working. I could see all seven test patterns from TV channel 2 to TV channel 6. A couple patterns were a bit wavey at the top of the screen, so I suspect something internal to the unit need to be adjusted. I was unable to test the R/G/B gun outputs.
The complete and original assembly manual is included.
Thanks for looking and good luck.
