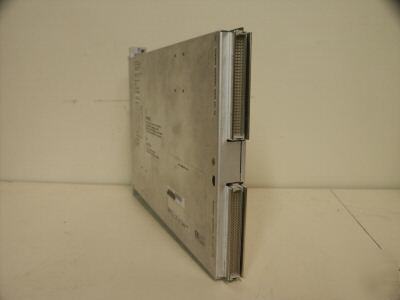

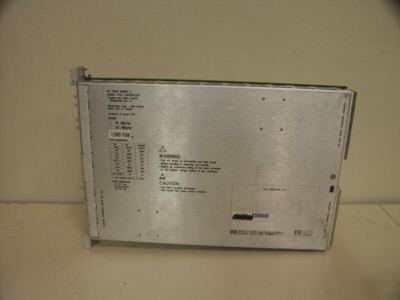

The HP E1498A V743/100 embedded controller is a C-size, 1-slot, VXI module. This high-performance message-based controller uses HP's PA-RISC technology to deliver extraordinary performance and direct VXI access.
Developed specifically as an embedded HP-UX (UNIX) controller for VXI, the V743 controller provides the high I/O performance of direct VXI backplane support, the space savings of an embedded controller, and the high power and speed of Agilent PA-RISC - all in an HP-UX environment! The V743 supports all VXI addressing modes (A16, A24, and A32), programmable interrupt handler, single-channel DMA for VXI extended memory devices, and a 1 MB dual-ported memory buffer for high-speed data acquisition. Note: You may use only one embedded controller in a system.
The V743/100, with its high-speed 100 MHz 7100LC PA-RISC processor, is ideal for development of run-time applications. This model is completely compatible with other 9000 Series 700 workstations and controllers. However, it requires HP-UX releases 9.05 and later. With HP-UX, you can set up industry-standard networking, windowing systems, and languages. Databases and a full range of VXI-related software are available for automated test applications.
* 1-Slot, C-size, message-based controller
* Direct VXI access with PA-RISC technology
* Compatibility with Series 700 workstations/controllers
* C-SCPI and Agilent VEE support
* VXIplug&play-compatible with HP-UX drivers
* TESTED GOOD WITH GUARANTEE.
16-64 MB (64 MHz),32-128 MB (100 MHz)

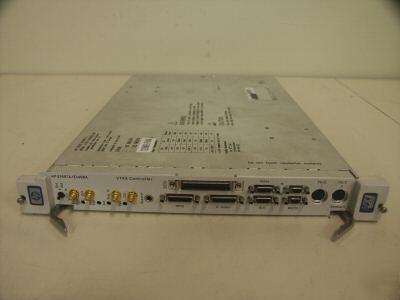

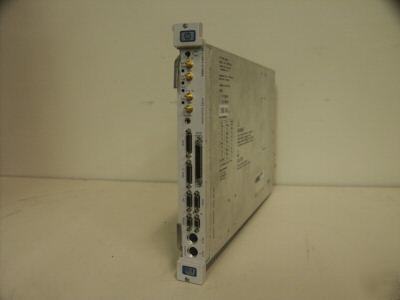

GPIB,2 RS-232,1 SCSI-2,LAN,AUI
SE keyboard and mouse Speaker Out Trigger I/O,Clock I/O
Display resolution: Color 1024x768 - 1280x1024
Internal mass storage: Optional external:
O.S.(earliest supported): HP-UX 9.05
VXI buses: TTL Trigger Bus - ECL Trigger Bus
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
