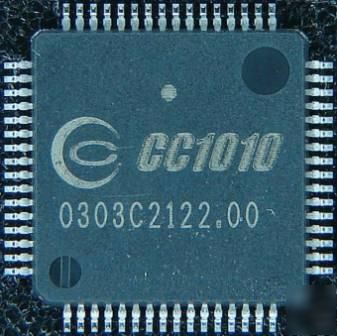

Texas Intruments / Chipcon CC1010
Single-Chip Very Low Power Integrated 300-1000 MHz
RF Transceiver and 8051-Compatible Microcontroller
* Fully Integrated UHF RF Transceiver
* Programmable frequency in the range 300 - 1000 MHz
* High sensitivity (typically -107 dBm at 2.4 kBaud)
* Programmable output power -20 to +10 dBm
* Very low current consumption (RX: 9.1 mA)
* Very few external components required and no external RF switch or IF filter required
* Single port antenna connection
* Fast PLL settling allows frequency hopping protocols
* FSK modulation with a data rate of up to 76.8 kBaud
* Manchester or NRZ coding and decoding of data performed in hardware. Byte delineation of data can be performed in hardware to lessen the processor burden
* RSSI output which can be sampled by on-chip ADC
* Complies with EN 300 220 and FCC CFR47 part 15
* High-Performance and Low-Power 8051-Compatible Microcontroller
* Optimised 8051-core which typically gives 2.5x the performance of a standard 8051
* In-circuit interactive debugging is supported for the Keil µVision IDE through a simple serial interface
* Data and Non-volatile Program Memory
* 32 kB of non-volatile Flash memory in-system programmable through a simple SPI interface or by the 8051 core.
* Typical Flash memory endurance: 20 000 write/erase cycles
* Programmable read and write lock of portions of Flash memory for software security
* 2048 + 128 Byte of internal SRAM
* Hardware DES Encryption / Decryption
* DES supported in hardware
* Power On Reset / Brown-Out Detection
* Three channel, max 23 kSample/s, 10 bit ADC
* Programmable watchdog timer.
* Real time clock with 32 kHz crystal oscillator
* Two timers / pulse counters and two timers / pulse width modulators
* Two programmable serial UARTs.
* 26 configurable general-purpose I/O-pins
* Random bit generator in hardware
* 8051 core and peripherals can use the RTC's 32 kHz clock
* Idle and sleep modes for reduced power consumption. System can wake up on interrupt or when ADC input exceeds a set threshold
* Low-power fully static CMOS design
* 2.7 - 3.6 V supply voltage
* -40 - 85 °C operational temperature
* 3 - 24 MHz crystal (up to 50 ppm) for the main crystal oscillator
* Very low power UHF wireless data transmitters and receivers
* 315 / 433 / 868 and 915 MHz ISM/SRD band systems
* Home automation and security
* AMR - Automatic Meter Reading
* RKE - Remote Keyless Entry with acknowledgement
