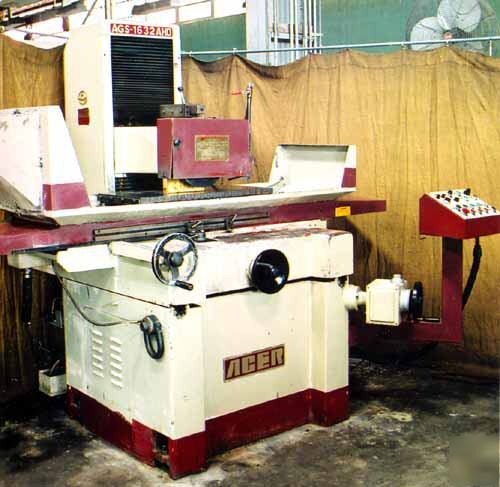

16" X 32" ACER MODEL AGS-1632AHD 3-AXIS HYDRAULIC SURFACE GRINDER
Motor Driven With 7.5 HP, 3 Phase, 60 Cycle, AC Spindle Drive.
16" x 32" Electromagnetic Chuck And Controls. Precision Teflon Ways. Saddle Movement. Cross Feed. Hydraulic Longitudinal Feed. Electronic Cross Feed In And Out. Automatic Incremental Down Feed. Automatic Lubrication Coolant Filtration System With Magnetic Separator And Paper Filter. Free Standing Hydraulic Unit. Wheel Balancing Base.
Working Surface of Chuck 16" x 32"
Grinding Width (Maximum) 17.75"
Distance from Spindle Center to Top of Table 23"
Maximum Load Capacity 1600 lbs
