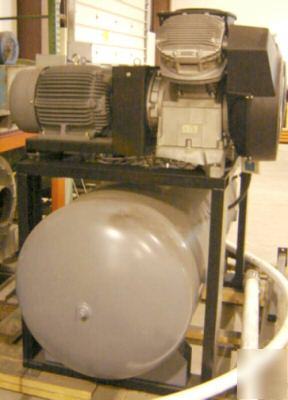

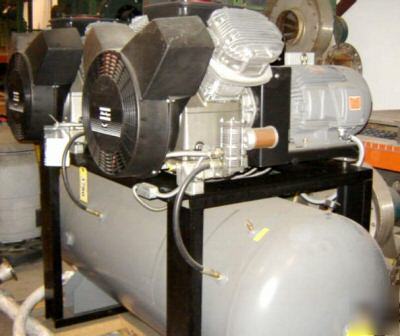

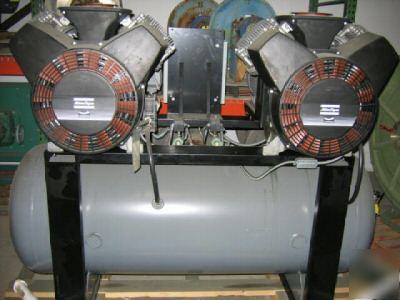

Two Independant Compressor/Motor Packs Mounted On A Common Air Receiver Tank
AIR RECIEVER TESTED TO 250 PSI @ 450 Degrees Fahrenheit.
15 HP 1780 RPM 230/460 VOLT GENERAL ELECTRIC MOTORS.
TYPE LE11UV, PRODUCT NUMBER 1503590494, 150 PSI MAXIMUM OUTPUT PRESSURE, 48.29 CFM PER COMPRESSOR, THEREFORE COMPRESSOR PACKAGE OVERALL IS 100 CFM.

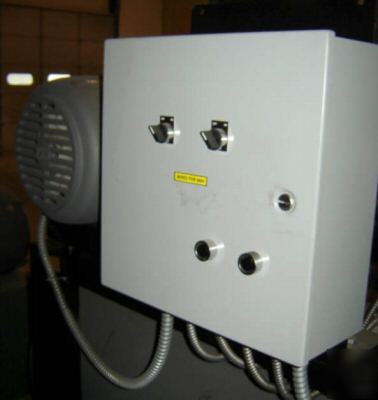

COMPLETE WITH DUAL COMPRESSOR SWITCHES.
FIRST COMPRESSOR S/N-AIW-045963, SECOND COMPRESSOR S/N-AIW-048505.
RECEIVER TANK WAS CONSTRUCTED IN 1996 BY BRUNNER ENGINEERING & MANUFACTURING COMPANY, BEDFORD, IN.
CRN #-EO495.1234567890; PART #-1258.
AIR RECEIVER IS APPROXIMATELY 30†DIAMETER BY 83†OVERALL LENGTH, 250 GALLONS.
