Note: This item contains one license of the PC software only ! It does NOT contain any hardware. Hardware can be purchased separately from our website if needed.
Product Website: http://
Download PC version: http:// /MIsetup.exe

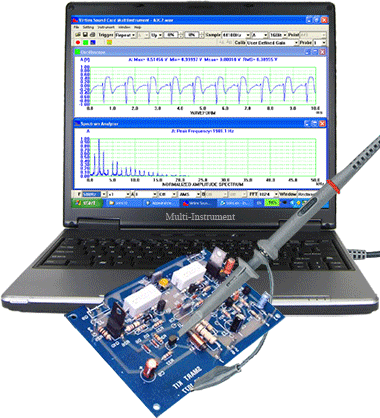

Multi-Instrument 3.0 (Lite) consists of a sound card dual trace oscilloscope, a real time spectrum analyzer, a signal generator and a frequency counter, and can run them concurrently. It features a specially designed data acquisition approach, which is able to monitor the input signal continuously without missing any trigger event before a frame of data is collected. It has a very fast screen refresh rate (typically greater than 50 frames per second). It supports sophisticated triggering method including pre-trigger and post-trigger. Both level trigger and differential trigger are supported.
A comprehensive range of functions are provided, including:
Waveform addition and subtraction, Lissajous Pattern, transient signal recording, voltmeter
RMS amplitude spectrum, relative amplitude spectrum, octave analysis (1/1,1/3,1/6,1/12,1/24), frequency compensation, frequency weighting (A,B,C,ITU-R 468), peak hold, averaging, measurement of THD, THD+N, SNR, SINAD, Noise Level, IMD, Bandwidth and Crosstalk, phase spectrum, auto correlation function, cross correlation function
Function generation, multitone generation, arbitrary waveform generation, burst tone generation, MLS generation, DTMF generation, musical scale generation, white noise and pink noise generation, and frequency/amplitude sweep signal generation.
Counter trigger level and hysteresis can be adjusted.
It Supports 8, 16, 24 bits and multilingual user interface, including English, French, German, Italian, Spanish, Portuguese, Russian, Simplified Chinese, Traditional Chinese, Japanese, and Korean.
Function Allocation in Multi-Instrument Series
The following table shows the function allocation matrix for Multi-Instrument series. The Spectrum 3D Plot, Data Logger, LCR Meter, Device Test Plan are add-on modules and should be purchased separately, and they are only available for Multi-Instrument Lite, Standard, and Pro versions.
Legend: Y - Function available Shaded Blank - Function NOT available
Sound Card Spectrum Analyzer 3.0
Sound Card Signal Generator 3.0
Extract Data and save them into a new WAV File
Latency for Sync. Output/Input
THD,THD+N,SNR,SINAD,Noise Level
Cross Correlation Peak detection
Cyclic Play Waveform in Oscilloscope
Software Loopback (all channels)
PC or Laptop with 8, 16 or 24 bit Windows compatible sound card, Microsoft Windows95 or greater, Microsoft NT or greater. Screen resolution is recommended to be greater than 800 × 600 pixels.
