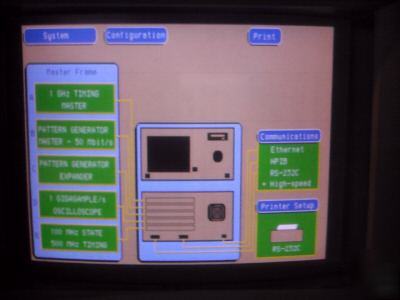

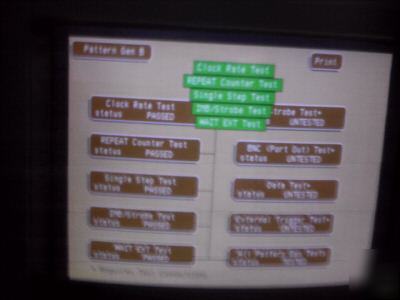

Up for sale is an HP16520A 50Mb/s pattern generator master analysis card for an HP/Agilent logic analyzer model(s): 16500(a)(b)(c). Only the item's powerup and registering ability was tested using a 16500b series logic analyzer, as no cables or connectors are present. Further item details below:
HP/Agilent 16520A Data Pattern Generator Specifications
* Channels: 12NRZ, 3RZ/48NRZ.
* Memory depth/ch: 4095 bits.
* Output levels: ECL, TTL, CMOS(with 10348A buffer pod).
Price is for the card only, no accessories are included.
