* Chevalier model Dm-323 ram type edm machine.

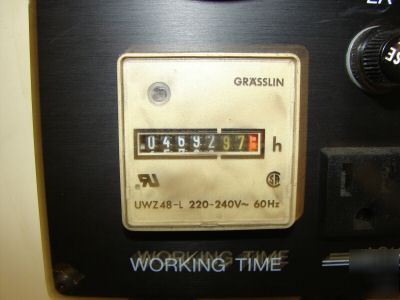

* Excellent low hour machine (4,692)

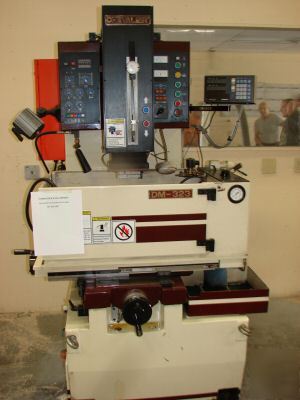

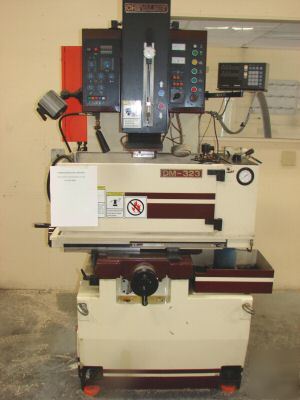

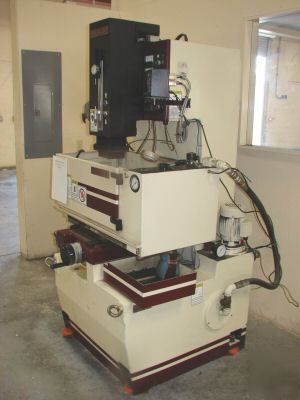

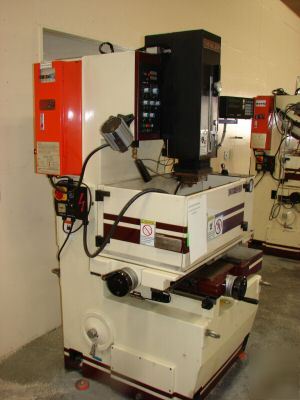

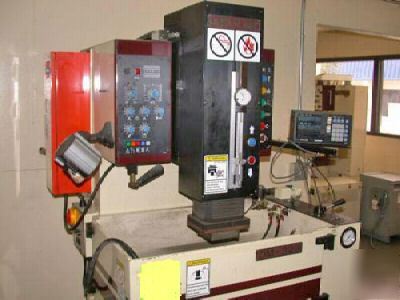

Chevalier Model DM-323 30-Amp Ram Type EDM Machine; S/N 0003309;
Table Size 11-3/4" x 9-5/8"

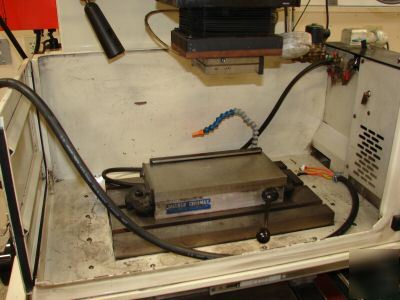

Inside Splash Guards 31" x 19-1/2" x 14"

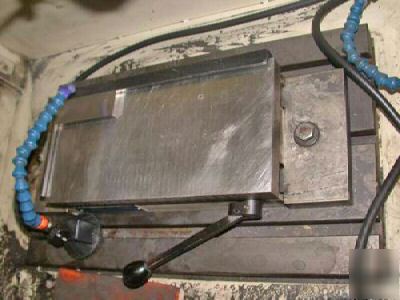

6" x 12" Permanent Magnetic Chuck
Chen Ying 1-Shot Lubrication; 100-300VDC

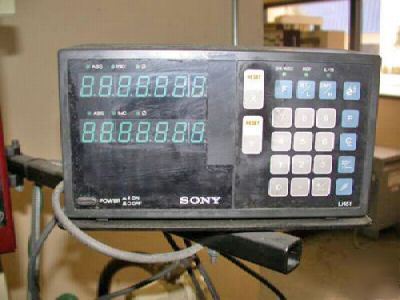

Sony Model LH51-2U7 2-Axis Digital Readout.
* MODEL: DM-323 S/N: 0003309 NEW: 1996
WORK TANK ..................................... 29.5" X 18.9" X 11.8"
WORK TABLE AREA (X & Y)........................ 19.7" X 11.8"
X-AXIS TRAVEL ................................. 11.8"
Y-AXIS TRAVEL ................................. 7.9"
Z-AXIS TRAVEL ................................. 5.9"
MAXIMUM ELECTRODE LOAD ........................ 132 LBS.
MAXIMUM WORKPIECE WEIGHT....................... 1,100 LBS.
DIELECTRIC RESERVOIR........................... 78 GALLONS
MACHINE FLOOR SPACE DIMS. ..................... 51" X 52" X 85"
MACHINE WEIGHT................................. 3,350 LBS.
SERVO SENSITIVITY ADJUSTMENT
PULSE PRESSURE - VACUUM FLUSHING
MICROMETER STOP ADJUSTMENT FOR DEPTH
WHEN OTHER MACHINES CAN'T CUT IT,
TRY CHEVALIER DIE SINK EDMs.
* Repeatability. Chevalier EDMs workheads travel on Schneeberger anti-friction linear needle roller guideways, driven by DC servo motors with digital servo control.
Benefits: smooth traverse, precise positioning and repeatability.
* Speed. PC-based, conversational control monitors machining conditions and automatically adjusts On/Off time, spark gap, servo sensibility and machining time.
Benefits: elimination of arcing, reduced electrode wear, better surface finish and faster material removal rate.
* Versatility. Chevalier EDMs are so versatile, you can do just about anything with them:
Benefits: boring, cutting, drilling & shaping capabilities on hardened steels & exotic metals. Easy jobs on small holes, irregular shaped holes, mold cavities and mold cores.
* Better Flushing. Three flushing systems (vacuum, pressure and pulse)
Benefits: less heat and constant dielectric fluid circulation
* Safety. Four standard safety devices: dielectric temperature sensor, dielectric level control, and temperature and photo cell detectors with automatic fire extinguisher and power shut-off.
* Rigid Construction. All-Meehanite cast iron, fully ribbed structure.
Benefits: vibration-free operation, long machine life.
