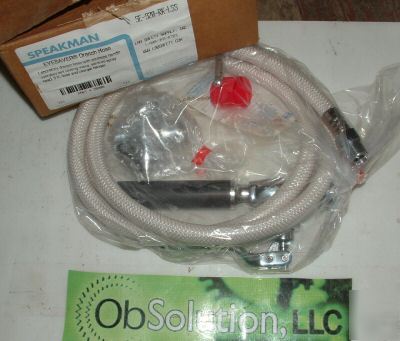

SPEAKMAN SE-920-RK EYESAVER DRENCH HOSE NEW IN BOX
ALL ITEMS INCLUDED ARE PICTURED
Specifications: REPLACEMENT DRENCH HOSE FOR THE FOLLOWING SPEAKMAN SYSTEM
SE-693-HS-SSH Installation, Maintenance & Operation Instructions
® EMERGENCY SHOWER AND EYEWASH
Floor mounted emergency deluge shower and aerated eyewash combination unit. Shower is supplied with a 1†NPTF stay-open
full flow ball valve, activated by triangular pull handle. Eyewash is supplied with 1/2†NPTF stay-open full flow ball valve,
SHOWER HEAD: 8†Dia. Stainless Steel.
FLOW CONTROL: Internal 20 gpm Regulator.
VALVE: 1†NPT Female Brass, Chrome-Plated. Full Flow Stay-Open Ball Valve.
ACTIVATOR: Powder Coated Yellow, Aluminum Triangular Pull Rod.
STANCHION: 1-1/4†IPS Steel Piping with Brass Fittings.
INLET & WASTE: 1-1/4†NPT Female.
FLOOR FLANGE: Brass Casting with (3) 17/32†Dia. Mounting Holes on 9†Dia. Bolt Circle, Spaced 120° apart.
FINISH: Safety Green Powder Coating.
EYEWASH: SE-582 (Reference additional SE-582 I.M.O. sheet)
HAND HELD SPRAY: SE-920 (Reference Additional SE-920 I.M.O. Sheet)
EMERGENCY SIGN: 7-7/8†x 12†Plastic Wall Sign.
do not use wrenches on painted surfaces. Use couplings and pipe to secure and gain leverage. Be sure and
use pipe sealant on all threaded connections. When using SE-870 (plastic shower head), use sealant compatible with ABS
plastic. Review drawing (as shown on other side) to assure proper location of inlets, outlets, and accessories. The best method
to assembling this unit is as follows: (1) Mount the bottom stanchion section to the floor using suitable anchors. Then assemble
the middle section and then the top section. (Use pipe sealant on all joints). (2) Rest the eyewash bowl on the rubber washer
and drain spud, making sure to get the bowl as level as possible. (3) Once bowl is positioned correctly on spud, apply plumbers
putty to drain strainer and tighten with hex tool (supplied). (3) Take 1/2†stainless steel flexible hose and connect it to the 1/2â€
NPTM supply outlet located on stanchion and 1/2†in-line strainer on eye/face wash. (4) Assemble pull rod and shower head.
(5) Once unit is completely assembled, connect potable water supply to 1-1/4†top inlet, and 1-1/4†waste to bottom outlet.
Failure to use potable water can result in emergency units producing impure or contaminated water causing possible further
injury. The drain tailpiece or waste should be connected to an adequate drain in compliance with local plumbing codes.
shower is activated by pulling the triangle pull handle. Once the valve is activated the head will continue to discharge
water until the valve is manually closed. This is done by pushing up the pull handle to the off position.
eyewash is activated by pushing the push handle back 90°. The unit will operate until the push handle is manually pulled
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspector’s initials should be noted.
AL1 (Air Horn Alarm) ◊ FLW (Flow Switch) ◊ SSBV1 (1†Stainless Steel Valve)
AL2 (Electrical Alarm) ◊ PC (Polished Chrome Shower Head) ◊ SSBV2 (1/2†Stainless Steel Valve)
AL3 (Electrical Alarm) â—Š BH (Brass Shower Head) â—Š TS (Top Supply)
AL2-C1D2 (Electrical Alarm / Haz. Area) â—Š FPV (Anti-Freeze Protection Valve) â—Š VPL (Vapor Proof Light)
AL3-C1D2 (Electrical Alarm / Haz. Area) â—Š HFO (Hand & Foot Operation) â—Š SGN6 (Combination Floor Sign)
XPR (Extended Pull Rod) â—Š SPV (Anti-Scald Protection Valve) â—Š
The valve and the eyewash are the only portion of the unit that may require maintenance. Should you need parts to repair this unit, please reference the parts listing below for correct part numbers. Reference additional technical sheets (supplied) for information on the SE-582 eyewash, SE-911-PR valve, SE-920 hand held spray, and the SE-880 shower head. Before any maintenance is done
be sure to shut the water supply off.
WARNING: Use only genuine Speakman parts when repairing or replacing components
. To order parts call 1-(***)-537-2107.
SE-693-HS REPLACEMENT/REPAIR PARTS
1 SE-911-PR 1†Ball Valve with
3 G47-0046-29 Aluminum Pull Rod
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing pressure of 30 PSI and a maximum static pressure of 125 PSI.
FLOW PRESSURE PSI (BAR) 30 (2.07) 60 (4.14)
FLOW RATE GPM (LPM) 20 (75) 25 (94)
Note: All units meet existing ANSI Z358.1 Standards and OSHA Rules. Product improvements may cause specification and dimensional changes without notice.
FLOW PRESSURE PSI (BAR) 30 (2.07)
