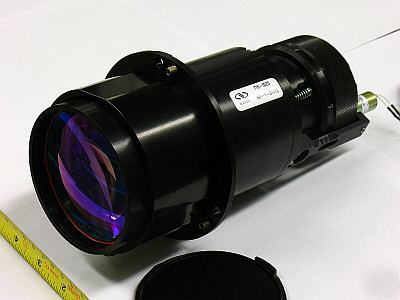

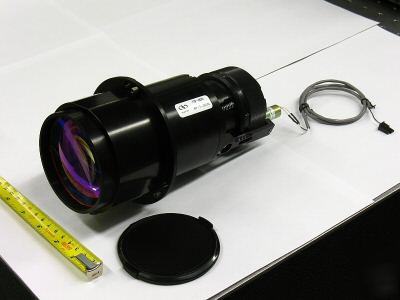

· Large aperture, high-grade 3-lens optical system with 1550-nm AR coatings.

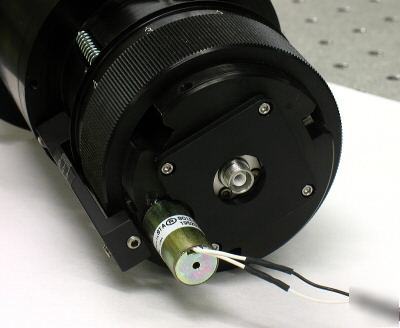

· Solenoid activated shutter (24V DC),

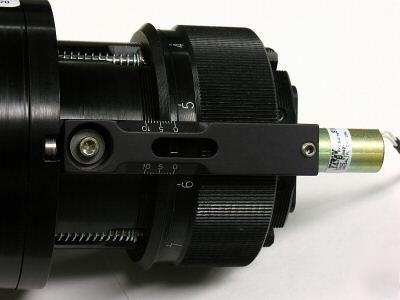

· Mounting flange with adjustment screws.
· Output aperture (approx): 2 ¾†(70mm),
· Dimensions (with flange): Diameter. 4.3†(110mm), Length 9.5†(242mm),

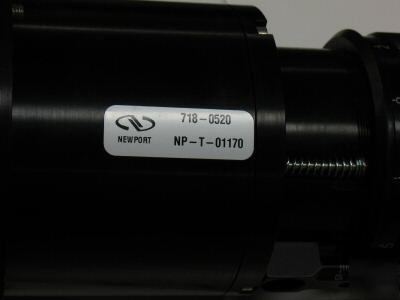

This laser fiber collimator OEM unit is designed to handle a 2W load at 1550nm (CW operation) for 100,000 hours. These units were originally fabricated for Northrop Grumman for military applications.
The collimator is ideal for Free-Space Optics megabit communications. You can check the interesting side of this technology on http://www.freespaceoptics.org/ and http://www.free-space-optics.org/
